Products > Surgical Microscope > Surgical Microscope > Ophthalmic Surgical Microscope with OLYMPUS Optics

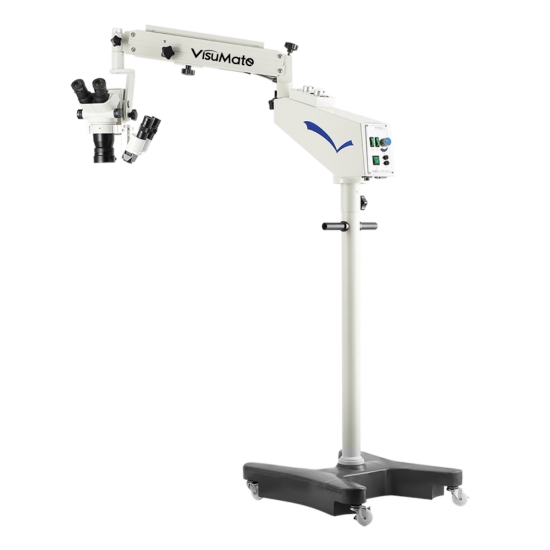

Ophthalmic Surgical Microscope with OLYMPUS Optics
Product name : Ophthalmic Surgical Microscope with OLYMPUS Optics
Product No. : SM-1000L
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Ophthalmic Surgical Operation Microscope
Model: SM-1000L
CE & US FDA Marked

SM-1000L Ophthalmic Surgical Microscope is one of our favorable models among customers, which is
quite suitable for common eye clinics.

Features:
1. Adopted Japanese OLYMPUS SZ51 main head;
2. Red reflex set makes surgery safer;
3. Advanced apochromatic optical system brings wide field of view, natural color and good depth of view;
4. Coaxial illumination, LED lamp illumination and guide fiber;
5. Cold light design and high brightness;
6. Imported motor with low noise.

Technical Specifications:
Microscope Part
Main Microscope              Olympus SZ51
Eyepiece                          10X wide field
Inclination Angle               45°
Pupillary Distance             50~76mm
Diopter Adjustment           ±5D Binocular
Objective Lens                  45mm
Magnification                    4X~20X zoom/ Manual zoom
Field of View                     8mm~65mm
Working Distance              ≥170mm
Focus Speed                    ±20mm by foot switch
Assistant Microscope        7X
Magnification

Illumination System
Type                                 Optical Fiber
Light Source                     Double bulbs, LED lamp
Control                             Adjustable
Intensity                            ≥60,000Lux
Power                               AC110V~220V, 60Hz/50Hz

Base Part
Length of Arm Extended  1100mm
Elevation                          ±100mm
Foot Switch                      Power focus
