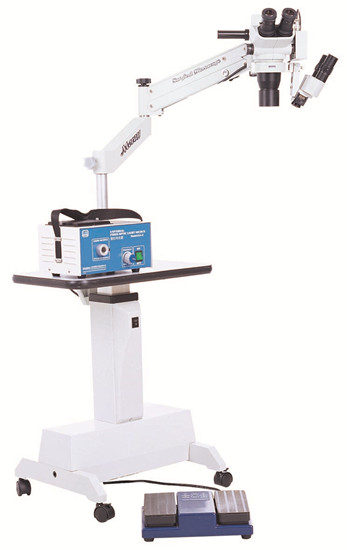

Portable Surgical Microscope SM2000C
Product name : Portable Surgical Microscope SM2000C
Product No. : SM2000C
             [Next Product]→
Online Inquiry         Email Us

  Details:
Ophthalmic Portable Surgical Microscope
Model: SM2000C
CE & US FDA Marked

SM2000C Portable Surgical Microscope is designed for wetlab & outreach surgery by Chinese Optics. The
microscope is adaptable with video system (Beamsplitter, Video Adapter & CCD) to record anterior segment
surgery for study and education purposes.

The whole body of SM2000C Microscope can be placed in a traveling case for convenient carrying, especially
for those, who do surgery in rural areas or mobile treatment.

Features:
1. Adopted Chinese optics technology;
2. 4X~20X zoom magnifications by foot control;
3. High contrast surgery details, wide field of view and excellent depth of view;
4. Non coaxial Assistant Microscope is optional;
5. Easy installation and operation;
6. Adaptable with video system to live video f
or study and education purposes;
7. The Microscope can be placed in a traveling case for wetlab & outreach surgery.

Technical Specifications:
Microscope Part
Main Head                       Chinese Optics
Eyepieces                        Wide Field 10X
Observation Angle           45°
Pupillary Distance            50~76mm
Dioptor Adjustment          ±5D
Objective                         45mm
Magnifications                 4X~20X motorized zoom
Field of View                    8mm~65mm
Working Distance            200mm
Focus Speed                   ±20mm foot control

Illumination System
Type                                Optical Fiber
Light Source                    Halogen Lamp 15V/150W
Control                            Stepless Control
Intensity                           ≥80,000 Lux
Power                              110V~220V, 60Hz/50Hz

Basement
Length of Extending Arm 840mm
Up and Down Range       ±100mm
Foot Switch                     Motorized focus & zoom
