Visioncare Medical Instruments Co.,Ltd

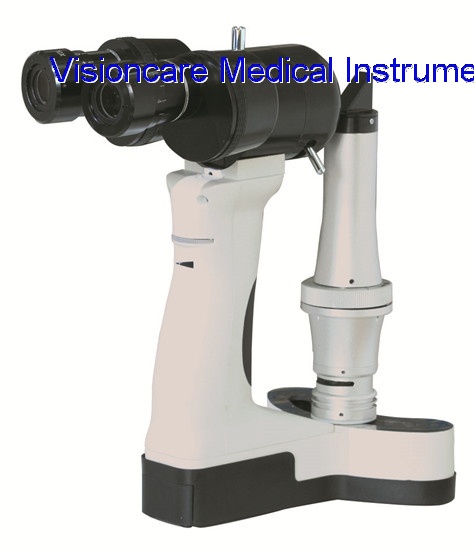

Ophthalmic Portable Slit Lamp Microscope
Model: YZ3
CE & US FDA Marked

Ophthalmic Portable Slit Lamp is used for anterior segment diagnosis. It has the same functions as a
table Slit Lamp, and quite suitable for education, nursing home, out study, pediatrics, veterinary surgeon,
out diagnosis and examination. There is no need to change the Eyepieces by YZ3 model during diagnosis.

Features:
1. Light weight, and only weights 0.8kgs;
2. Easy for single hand operation;
3. Linkable Eyepieces;
4. Total 2 magnifications: 10X, 16X by toggle change;
5. White LED Lamp illumination;
6. Workable with Phone Adapter to photography.

Technical Parameters:
Microscope
Type                               Converging Microscope
Objective Magnification  2 step magnifications
Total Magnifications       10X,16X
Pupillary Distance          50~75mm
Working Distance           60mm

Slit Illumination
Slit Width                        0~12mm continuously adjustable
Slit Height                       0.2mm, 1mm, 5mm, 12mm
Spot Diameter                0.2mm, 1mm, 5mm, 12mm
Slit Rotator Angle           Horizontal ±30°
Diopter Compensation   ±8D
Filters                             Color Temperature Compensation, Redfree, Cobalt blue
Illumination                    White LED
Working hour                 5~6 hours

Battery
Voltage                          AC110V~240V
Frequency                     60Hz/50Hz
Maximal Illumination      ≥30,000LX

Power Consumption      7.4V 2200mA rechargeable Li battery
