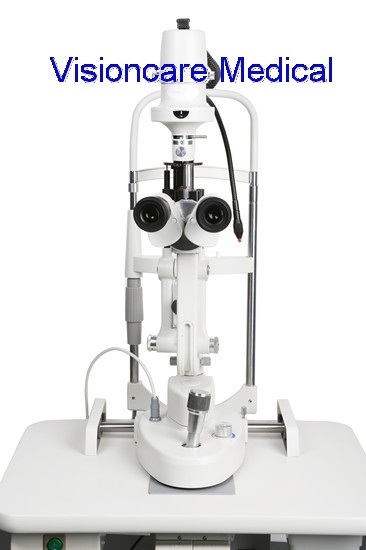

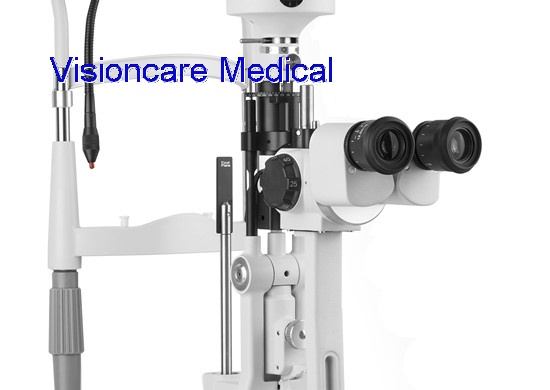

Standard Slit Lamp Microscope S350
Standard Slit Lamp Microscope S350 Standard Slit Lamp Microscope S350
Product name : Standard Slit Lamp Microscope S350
Product No. : S350
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:
Standard Table Slit Lamp
Able to adapt Beamsplitter, Camera Adapter and CCD video system
Model: S350/S350S
CE & FDA Marked

Features:
1. Tower style Slit Lamp Microscope;
2. The total magnification is 5 step or 3 step;
3. Both hologen lamp and LED lamp illumination available;
4. Workable with Camera Beamsplitter, video system and Teaching Tube etc..

Technical Specifications:
Microscope Part
Microscope Type                 Galilean Type
Magnification Change          Revolving Drum (5 or 3 step)
Total Magnifications             6X, 10X, 16X, 25X, 40X (S350)
                                            10X, 16X, 25X (S350S)
Eyepieces                           12.5X
Angle between Eyepieces  13°
Pupillary Adjustment           52mm~78mm
Diopter Adjustment             ±6D
Field of View                       34.7mm, 22mm, 13.5mm, 8.5mm, 5.5mm (S350)
                                            22mm, 13.5mm, 8.5mm (S350S)
Slit Illumination Part
Slit Width                            0~14mm continuous (Slit becomes a circle at 14mm)
Slit Length                          1~14mm continuous
Aperture Diameters            14mm, 10mm, 5mm, 3mm, 2mm, 1mm, 0.2mm
Slit Angle                            0°~180°
Slit Inclination                     5°, 10°, 15°, 20°
Filters                                 Heat-absorption, ND, Red-free, Cobalt blue
Lamp                                  6V/20W Halogen Lamp
Luminance                          ≥50KLX

Instrument Base
Longitudinal Movement      110mm
Lateral Movement               110mm
Vertical Movement              30mm
Fine Base Movement         15mm

Chin-rest
Vertical Movement              80mm
Fixation                               LED

Power Supply
Input Voltage                      110V~220V
Input Frequency                 60Hz/50Hz
Power Consumption           30VA(max)
Output Voltage                   Lamp 6V, Fixation 3V
